Building Healthier Homes — We provide full service design and custom building solutions, blending age old tradition and expertise from Germany with the latest in energy efficient technology.
The Agepan System…
Product Description, Features and Benefits:
Agepan® System and Functional Wood® represent the world of Healthy Living.
The Agepan® System is comprised of building materials that form a vapor open wood building envelope. Agepan® Functional Wood® is a natural-based, high-tech product certified by the Environmental Product Declaration (EPD). Through a special treatment process surface areas are greatly enlarged to ensure the product's prime function, which is to regulate room climate through a vapor open wall assembly.
Agepan® Functional Wood® works as a natural regulating element for room climate. If the air inside the room contains too much moisture, Agepan ® Functional Wood® absorbs it. If the air in the room is too dry, Functional Wood® releases moisture through its wood fibers. Agepan® Functional Wood® ensures that you will always feel comfortable in a healthy environment with the perfect room climate.
Agepan® System and Functional
Wood® Components
Information & Learning Resources:

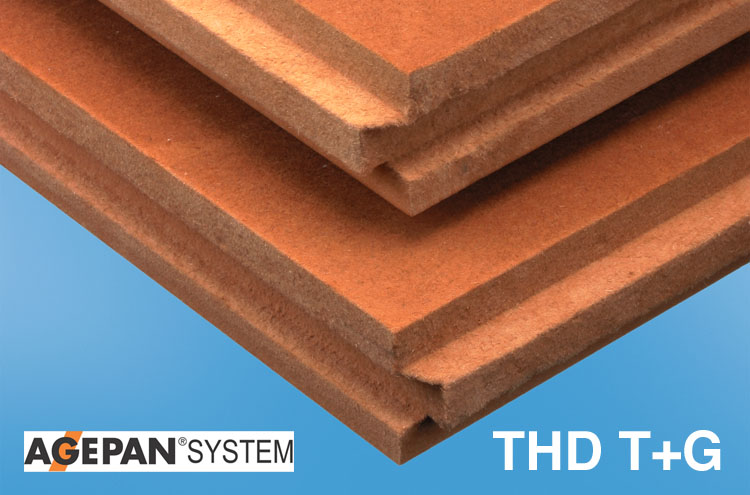

Agepan® THD T+G 230; wood fiber insulating panel advantages:
- Minimization of thermal bridges
- Good insulation
- Very good summer heat protection due to high heat storage capacity
- Windproof and water-repellent
- Particularly stable and moisture-resistant, eliminating panel sag
- Especially suitable for the prefabrication of elements and for on-site assembly
- Easy to work with: from 60 mm dry, safely walkable up to 1 m rafter spacing and 100 kg in the case of joints without overhang – fulfills the requirements of OnR 222 19-2 regarding the walkability of roof supports
- Easy assembly thanks to chamfered tongue and groove profile

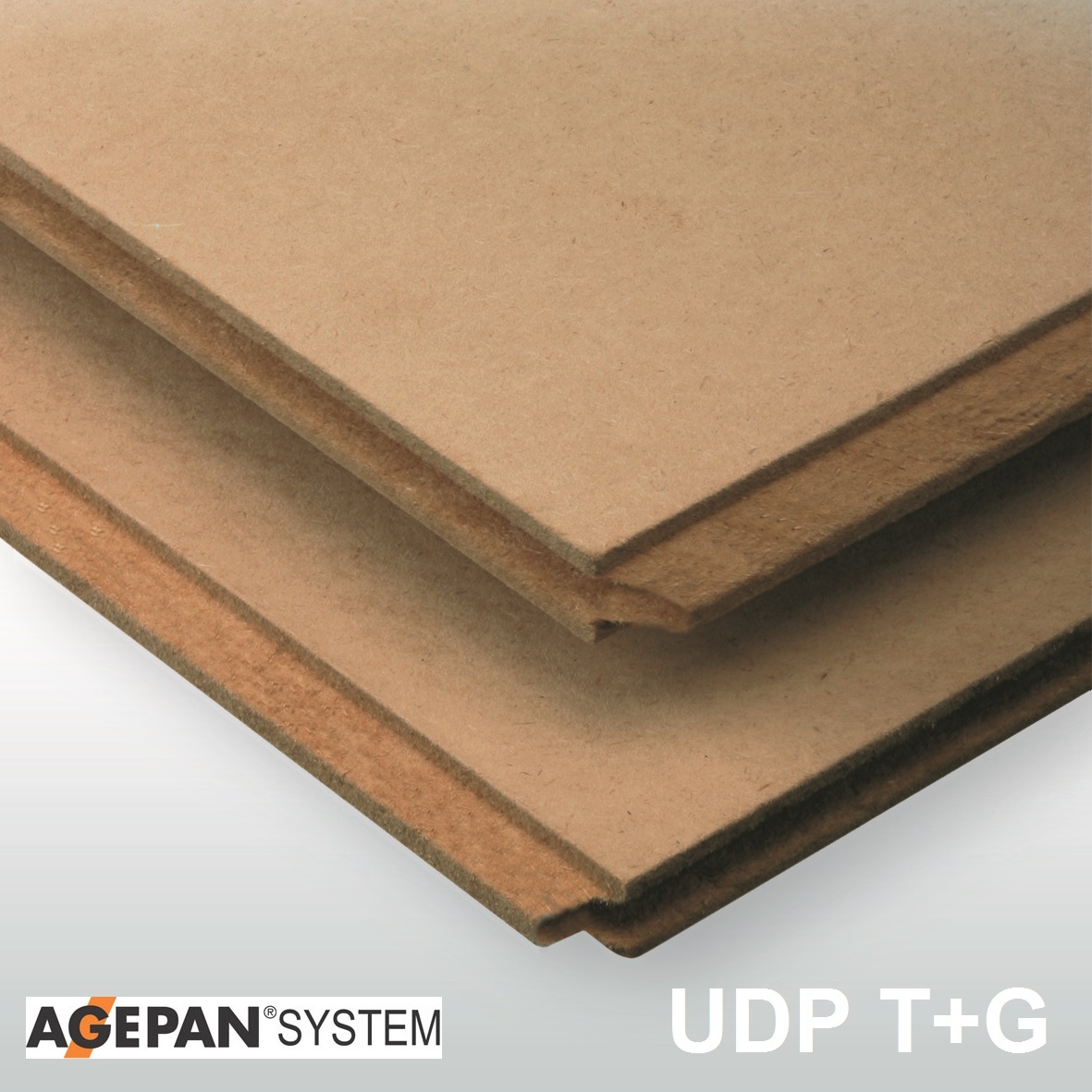

Agepan® UDP25 T&G Advantages:
- Windproof and water repellent
- Vapour-permeable: sd ≤0.2m, thus no chemical wood preservation is necessary
- Particularly stable and moisture0resistant, thus no sagging of the panels
- Heat-insulating and noise-absorbing
- With thicknesses of 25 and 32mm, the requirements of ONR 22219-2 regarding the walk-on stability of under roofs are complied with
- The 22mm panel can be walked on in the supported area
- AGEPAN® UDP, 25mm, can be plastered in window and door jambs
- Very favourable biological compatibility
- Negligible fibre abrasion
- Good adhesion of adhesive tapes, thus at least 50% primer savings
- Fastening in the roof is carried out only with approved 8mm single-threaded screws or with staples

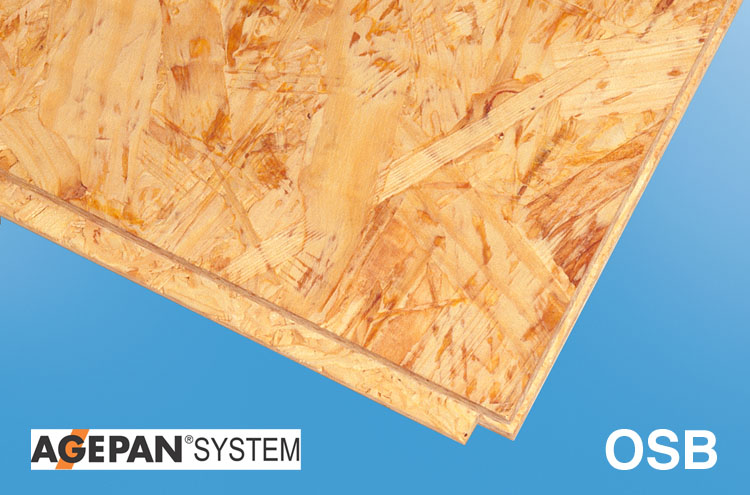

Agepan® OSB; structural panel advantages:
More form stable then standard OSB; improved CNC equipment performance
Agepan® Cell; cellulose insulation advantages:
- Excellent wood based insulation product of highest ecological standard
- Ability to breath and regulate moisture

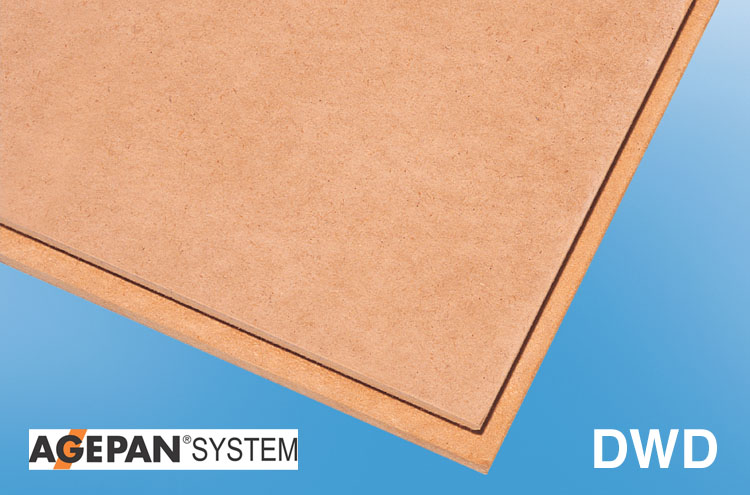

Agepan® DWD Sheathing - Advantages
- Officially approved for wind, break and bend reinforcement
- Easy to work with: at 16mm, it will support weight ina dry state up to 1m rafter spacing and 100kg with non-floating joints - fulfils the requirements of ONR 222 19-2 regarding the walk-on stability of under-roofs
- Vapour-permeable, windproof and rainproof: solid planking and second water-bearing layer
- Efficient and quick laying and cost-saving prefabrication possible
- F30-B construction in the AGEPAN® SYSTEM
- Recommended for biological compatibility
- Good adhesion of adhesive tapes

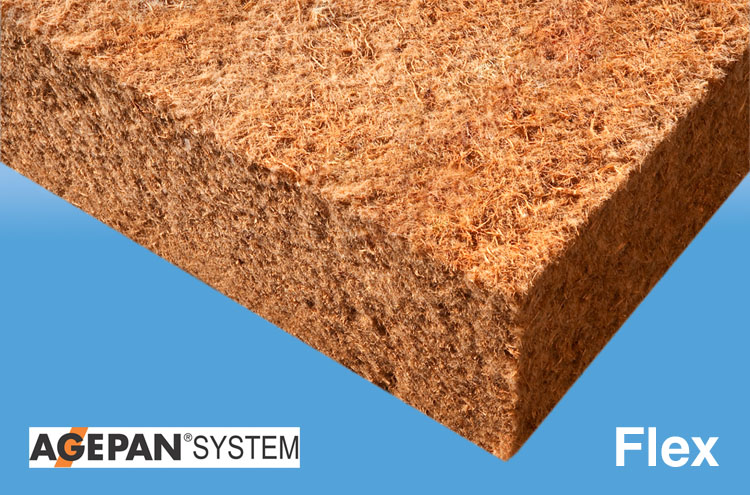

Agepan® Flex; wood fiber insulation advantages:
- Excellent insulation product of highest ecological standard
- Ability to breathe and regulate moisture
Other Agepan® System products; UDP, DWD, and TED
- Find additional information in General Agepan® System Brochure
